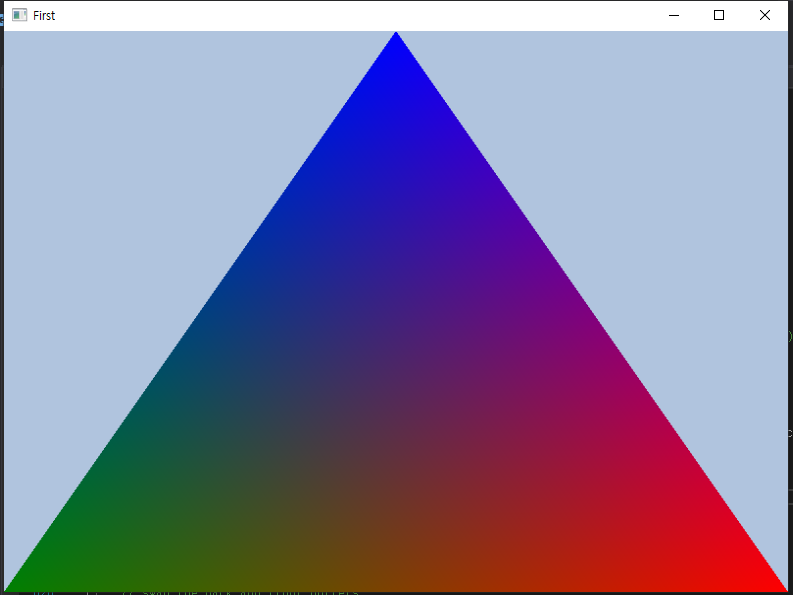

20. 삼각형 그리기





// color.hlsl

struct VertexIn
{
    float3 PosL  : POSITION;
    float4 Color : COLOR;
};

struct VertexOut
{
    float4 PosH  : SV_POSITION;
    float4 Color : COLOR;
};

VertexOut VS(VertexIn vin)
{
    VertexOut vout = (VertexOut)0;

    // Transform to homogeneous clip space.
    vout.PosH = float4(vin.PosL, 1.0f);


    // Just pass vertex color into the pixel shader.
    vout.Color = vin.Color;

    return vout;
}

float4 PS(VertexOut pin) : SV_Target
{
    return pin.Color;
}







#include <windows.h>
#include "d3dx12.h"
#include <DirectXMath.h>
#include <DirectXColors.h>
#include <vector>
#include <array>
#include <wrl.h>
#include <dxgi.h>
#include <dxgi1_4.h>
#include <memory>
#include <d3dcompiler.h>
#include <vector>
#include <utility>

#define SWAP_CHAIN_BUFFER_COUNT 2
#define WIDTH 800
#define HEIGHT 600
#define IDC_CLIENT            109

#pragma comment(lib, "d3d12")
#pragma comment(lib, "dxgi")
#pragma comment(lib, "dxguid")
#pragma comment(lib, "d3dcompiler")

struct Vertex {
    DirectX::XMFLOAT3 pos;
    DirectX::XMFLOAT4 color;
};

HWND hWnd;
HACCEL hAccelTable;
MSG msg;
WNDCLASS WndClass;

LRESULT CALLBACK WndProc(HWND, UINT, WPARAM, LPARAM);
HINSTANCE g_hInst;
LPCTSTR lpszClass = TEXT("First");

Microsoft::WRL::ComPtr<IDXGIFactory> mdxgiFactory;
Microsoft::WRL::ComPtr<ID3D12Device> md3dDevice;
Microsoft::WRL::ComPtr<ID3D12Fence>  mFence;

UINT mRtvDescriptorSize = 0;

Microsoft::WRL::ComPtr<ID3D12CommandQueue>          mCommandQueue;
Microsoft::WRL::ComPtr<ID3D12CommandAllocator>      mDirectCmdListAlloc;
Microsoft::WRL::ComPtr<ID3D12GraphicsCommandList>   mCommandList;

Microsoft::WRL::ComPtr<IDXGISwapChain> mSwapChain;
DXGI_FORMAT mBackBufferFormat = DXGI_FORMAT_R8G8B8A8_UNORM;
const int SwapChainBufferCount = 2;

Microsoft::WRL::ComPtr<ID3D12DescriptorHeap> mRtvHeap;

UINT64 mCurrentFence = 0;

Microsoft::WRL::ComPtr<ID3D12Resource> mSwapChainBuffer[SwapChainBufferCount];

int mCurrBackBuffer = 0;

D3D12_VIEWPORT mScreenViewport;
D3D12_RECT mScissorRect;

Microsoft::WRL::ComPtr<ID3D12RootSignature> mRootSignature = nullptr;

Microsoft::WRL::ComPtr<ID3DBlob> mvsByteCode = nullptr;
Microsoft::WRL::ComPtr<ID3DBlob> mpsByteCode = nullptr;

UINT vbByteSize, ibByteSize;
std::vector<D3D12_INPUT_ELEMENT_DESC> mInputLayout;

Microsoft::WRL::ComPtr<ID3DBlob> VertexBufferCPU = nullptr;
Microsoft::WRL::ComPtr<ID3DBlob> IndexBufferCPU = nullptr;

Microsoft::WRL::ComPtr<ID3D12Resource> VertexBufferGPU = nullptr;
Microsoft::WRL::ComPtr<ID3D12Resource> IndexBufferGPU = nullptr;

Microsoft::WRL::ComPtr<ID3D12Resource> VertexBufferUploader = nullptr;
Microsoft::WRL::ComPtr<ID3D12Resource> IndexBufferUploader = nullptr;

Microsoft::WRL::ComPtr<ID3D12PipelineState> mPSO = nullptr;

void FlushCommandQueue()
{
    // Advance the fence value to mark commands up to this fence point.
    mCurrentFence++;

    // Add an instruction to the command queue to set a new fence point.  Because we
    // are on the GPU timeline, the new fence point won't be set until the GPU finishes
    // processing all the commands prior to this Signal().
    mCommandQueue->Signal(mFence.Get(), mCurrentFence);

    // Wait until the GPU has completed commands up to this fence point.
    if (mFence->GetCompletedValue() < mCurrentFence)
    {
        HANDLE eventHandle = CreateEventEx(nullptr, false, false, EVENT_ALL_ACCESS);

        // Fire event when GPU hits current fence.
        mFence->SetEventOnCompletion(mCurrentFence, eventHandle);

        // Wait until the GPU hits current fence event is fired.
        WaitForSingleObject(eventHandle, INFINITE);
        CloseHandle(eventHandle);
    }
}


void Init() {
    // 1. Init direct3D
    CreateDXGIFactory1(IID_PPV_ARGS(&mdxgiFactory));
    D3D12CreateDevice(nullptr,             // default adapter
        D3D_FEATURE_LEVEL_11_0,
        IID_PPV_ARGS(&md3dDevice));

    md3dDevice->CreateFence(0, D3D12_FENCE_FLAG_NONE,
        IID_PPV_ARGS(&mFence));

    mRtvDescriptorSize          = md3dDevice->GetDescriptorHandleIncrementSize(D3D12_DESCRIPTOR_HEAP_TYPE_RTV);

    // 1-1. Create Command Objects
    D3D12_COMMAND_QUEUE_DESC queueDesc = {};
    queueDesc.Type = D3D12_COMMAND_LIST_TYPE_DIRECT;
    queueDesc.Flags = D3D12_COMMAND_QUEUE_FLAG_NONE;
    md3dDevice->CreateCommandQueue(&queueDesc, IID_PPV_ARGS(&mCommandQueue));

    md3dDevice->CreateCommandAllocator(
        D3D12_COMMAND_LIST_TYPE_DIRECT,
        IID_PPV_ARGS(mDirectCmdListAlloc.GetAddressOf()));

    md3dDevice->CreateCommandList(
        0,
        D3D12_COMMAND_LIST_TYPE_DIRECT,
        mDirectCmdListAlloc.Get(), // Associated command allocator
        nullptr,                   // Initial PipelineStateObject
        IID_PPV_ARGS(mCommandList.GetAddressOf()));

    // 1-2. Create Swap Chain
    // Release the previous swapchain we will be recreating.
    mSwapChain.Reset();

    DXGI_SWAP_CHAIN_DESC sd;
    sd.BufferDesc.Width = WIDTH;
    sd.BufferDesc.Height = HEIGHT;
    sd.BufferDesc.RefreshRate.Numerator = 60;
    sd.BufferDesc.RefreshRate.Denominator = 1;
    sd.BufferDesc.Format = mBackBufferFormat;
    sd.BufferDesc.ScanlineOrdering = DXGI_MODE_SCANLINE_ORDER_UNSPECIFIED;
    sd.BufferDesc.Scaling = DXGI_MODE_SCALING_UNSPECIFIED;
    sd.SampleDesc.Count = 1;
    sd.SampleDesc.Quality = 0;
    sd.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;
    sd.BufferCount = SwapChainBufferCount;
    sd.OutputWindow = hWnd;
    sd.Windowed = true;
    sd.SwapEffect = DXGI_SWAP_EFFECT_FLIP_DISCARD;
    sd.Flags = DXGI_SWAP_CHAIN_FLAG_ALLOW_MODE_SWITCH;

    // Note: Swap chain uses queue to perform flush.
    mdxgiFactory->CreateSwapChain(
        mCommandQueue.Get(),
        &sd,
        mSwapChain.GetAddressOf());


    // 1-3. Create Rtv And Dsv DescriptorHeaps
    D3D12_DESCRIPTOR_HEAP_DESC rtvHeapDesc;
    rtvHeapDesc.NumDescriptors = SwapChainBufferCount;
    rtvHeapDesc.Type = D3D12_DESCRIPTOR_HEAP_TYPE_RTV;
    rtvHeapDesc.Flags = D3D12_DESCRIPTOR_HEAP_FLAG_NONE;
    rtvHeapDesc.NodeMask = 0;
    md3dDevice->CreateDescriptorHeap(
        &rtvHeapDesc, IID_PPV_ARGS(mRtvHeap.GetAddressOf()));

    // Flush before changing any resources.
    FlushCommandQueue();

    // Release the previous resources we will be recreating.
    for (int i = 0; i < SwapChainBufferCount; ++i)
        mSwapChainBuffer[i].Reset();

    // Resize the swap chain.
    mSwapChain->ResizeBuffers(
        SwapChainBufferCount,
        WIDTH, HEIGHT,
        mBackBufferFormat,
        DXGI_SWAP_CHAIN_FLAG_ALLOW_MODE_SWITCH);

    mCurrBackBuffer = 0;

    CD3DX12_CPU_DESCRIPTOR_HANDLE rtvHeapHandle(mRtvHeap->GetCPUDescriptorHandleForHeapStart());
    for (UINT i = 0; i < SwapChainBufferCount; i++) {
        mSwapChain->GetBuffer(i, IID_PPV_ARGS(&mSwapChainBuffer[i]));
        md3dDevice->CreateRenderTargetView(mSwapChainBuffer[i].Get(), nullptr, rtvHeapHandle);
        rtvHeapHandle.Offset(1, mRtvDescriptorSize);
    }

    // Update the viewport transform to cover the client area.
    mScreenViewport.TopLeftX = 0;
    mScreenViewport.TopLeftY = 0;
    mScreenViewport.Width = static_cast<float>(WIDTH);
    mScreenViewport.Height = static_cast<float>(HEIGHT);
    mScreenViewport.MinDepth = 0.0f;
    mScreenViewport.MaxDepth = 1.0f;

    mScissorRect = { 0, 0, WIDTH, HEIGHT };


    // 2. Build Box Geometry
    std::array<Vertex, 3> vertices = {
        Vertex({ DirectX::XMFLOAT3(0.f, 1.0f, .0f), DirectX::XMFLOAT4(DirectX::Colors::Blue) }),
        Vertex({ DirectX::XMFLOAT3(1.f, -1.0f, .0f), DirectX::XMFLOAT4(DirectX::Colors::Red) }),
        Vertex({ DirectX::XMFLOAT3(-1.0f, -1.0f, .0f), DirectX::XMFLOAT4(DirectX::Colors::Green) }),
    };

    std::array<std::uint16_t, 3> indices = { 0, 1, 2 };

    vbByteSize = (UINT)vertices.size() * sizeof(Vertex);
    ibByteSize = (UINT)indices.size() * sizeof(std::uint16_t);

    md3dDevice->CreateCommittedResource(
        &CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_UPLOAD),
        D3D12_HEAP_FLAG_NONE,
        &CD3DX12_RESOURCE_DESC::Buffer(vbByteSize),
        D3D12_RESOURCE_STATE_GENERIC_READ,
        nullptr,
        IID_PPV_ARGS(VertexBufferGPU.GetAddressOf()));

    // 생성된 리소스에 vertices의 정보를 넣어야 한다.
    // Copy the triangle data to the vertex buffer.
    void* vertexDataBuffer = nullptr;
    CD3DX12_RANGE vertexReadRange(0, 0); // We do not intend to read from this resource on the CPU.
    VertexBufferGPU->Map(0, &vertexReadRange, &vertexDataBuffer);
    ::memcpy(vertexDataBuffer, &vertices[0], vbByteSize);
    VertexBufferGPU->Unmap(0, nullptr);

    md3dDevice->CreateCommittedResource(
        &CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_UPLOAD),
        D3D12_HEAP_FLAG_NONE,
        &CD3DX12_RESOURCE_DESC::Buffer(ibByteSize),
        D3D12_RESOURCE_STATE_GENERIC_READ,
        nullptr,
        IID_PPV_ARGS(IndexBufferGPU.GetAddressOf()));

    // 생성된 리소스에 indexes의 정보를 넣어야 한다.
    // Copy the triangle data to the index buffer.
    void* indexDataBuffer = nullptr;
    CD3DX12_RANGE indexReadRange(0, 0); // We do not intend to read from this resource on the CPU.
    IndexBufferGPU->Map(0, &indexReadRange, &indexDataBuffer);
    ::memcpy(indexDataBuffer, &indices[0], ibByteSize);
    IndexBufferGPU->Unmap(0, nullptr);

    // 3. Build Root Signature
    // Shader programs typically require resources as input (constant buffers,
    // textures, samplers).  The root signature defines the resources the shader
    // programs expect.  If we think of the shader programs as a function, and
    // the input resources as function parameters, then the root signature can be
    // thought of as defining the function signature.

    // Root parameter can be a table, root descriptor or root constants.

    // A root signature is an array of root parameters.
    CD3DX12_ROOT_SIGNATURE_DESC rootSigDesc(0, NULL, 0, NULL,
        D3D12_ROOT_SIGNATURE_FLAG_ALLOW_INPUT_ASSEMBLER_INPUT_LAYOUT);

    // create a root signature with a single slot which points to a descriptor range consisting of a single constant buffer
    Microsoft::WRL::ComPtr<ID3DBlob> serializedRootSig = nullptr;
    Microsoft::WRL::ComPtr<ID3DBlob> errorBlob = nullptr;
    D3D12SerializeRootSignature(&rootSigDesc, D3D_ROOT_SIGNATURE_VERSION_1,
        serializedRootSig.GetAddressOf(), errorBlob.GetAddressOf());

    if (errorBlob != nullptr)
    {
        ::OutputDebugStringA((char*)errorBlob->GetBufferPointer());
    }

    md3dDevice->CreateRootSignature(
        0,
        serializedRootSig->GetBufferPointer(),
        serializedRootSig->GetBufferSize(),
        IID_PPV_ARGS(&mRootSignature));

    // 4. Build Shaders And Input Layout
    UINT compileFlags = 0;
#if defined(DEBUG) || defined(_DEBUG)
    compileFlags = D3DCOMPILE_DEBUG | D3DCOMPILE_SKIP_OPTIMIZATION;
#endif
    Microsoft::WRL::ComPtr<ID3DBlob> errors;
    HRESULT hr1 = D3DCompileFromFile(L"Shaders\\color.hlsl", nullptr, D3D_COMPILE_STANDARD_FILE_INCLUDE,
        "VS", "vs_5_0", compileFlags, 0, &mvsByteCode, &errors);
    HRESULT hr2 = D3DCompileFromFile(L"Shaders\\color.hlsl", nullptr, D3D_COMPILE_STANDARD_FILE_INCLUDE,
        "PS", "ps_5_0", compileFlags, 0, &mpsByteCode, &errors);

    if (errors != nullptr)
        OutputDebugStringA((char*)errors->GetBufferPointer());

    mInputLayout =
    {
        { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D12_INPUT_CLASSIFICATION_PER_VERTEX_DATA, 0 },
        { "COLOR", 0, DXGI_FORMAT_R32G32B32A32_FLOAT, 0, 12, D3D12_INPUT_CLASSIFICATION_PER_VERTEX_DATA, 0 }
    };

    // 5. Build PSO
    D3D12_GRAPHICS_PIPELINE_STATE_DESC psoDesc;
    ZeroMemory(&psoDesc, sizeof(D3D12_GRAPHICS_PIPELINE_STATE_DESC));
    psoDesc.InputLayout = { mInputLayout.data(), (UINT)mInputLayout.size() };
    psoDesc.pRootSignature = mRootSignature.Get();
    psoDesc.DepthStencilState.DepthEnable = FALSE;
    psoDesc.DepthStencilState.StencilEnable = FALSE;
    psoDesc.VS =
    {
        reinterpret_cast<BYTE*>(mvsByteCode->GetBufferPointer()),
        mvsByteCode->GetBufferSize()
    };
    psoDesc.PS =
    {
        reinterpret_cast<BYTE*>(mpsByteCode->GetBufferPointer()),
        mpsByteCode->GetBufferSize()
    };
    psoDesc.RasterizerState = CD3DX12_RASTERIZER_DESC(D3D12_DEFAULT);
    psoDesc.BlendState = CD3DX12_BLEND_DESC(D3D12_DEFAULT);
    psoDesc.SampleMask = UINT_MAX;
    psoDesc.PrimitiveTopologyType = D3D12_PRIMITIVE_TOPOLOGY_TYPE_TRIANGLE;
    psoDesc.NumRenderTargets = 1;
    psoDesc.RTVFormats[0] = mBackBufferFormat;
    psoDesc.SampleDesc.Count = 1;
    md3dDevice->CreateGraphicsPipelineState(&psoDesc, IID_PPV_ARGS(&mPSO));

    //===============================

    // Execute the initialization commands.
    mCommandList->Close();
    ID3D12CommandList* cmdsLists_[] = { mCommandList.Get() };
    mCommandQueue->ExecuteCommandLists(_countof(cmdsLists_), cmdsLists_);

    // Wait until initialization is complete.
    FlushCommandQueue();
}


void Update() {
    // Draw
    // Reuse the memory associated with command recording.
    // We can only reset when the associated command lists have finished execution on the GPU.
    mDirectCmdListAlloc->Reset();

    // A command list can be reset after it has been added to the command queue via ExecuteCommandList.
    // Reusing the command list reuses memory.
    mCommandList->Reset(mDirectCmdListAlloc.Get(), mPSO.Get());

    mCommandList->RSSetViewports(1, &mScreenViewport);
    mCommandList->RSSetScissorRects(1, &mScissorRect);

    // Indicate a state transition on the resource usage.
    mCommandList->ResourceBarrier(1, &CD3DX12_RESOURCE_BARRIER::Transition(mSwapChainBuffer[mCurrBackBuffer].Get(),
        D3D12_RESOURCE_STATE_PRESENT, D3D12_RESOURCE_STATE_RENDER_TARGET));

    // Clear the back buffer and depth buffer.
    CD3DX12_CPU_DESCRIPTOR_HANDLE cBackBufferViewHandle(
        mRtvHeap->GetCPUDescriptorHandleForHeapStart(),
        mCurrBackBuffer,
        mRtvDescriptorSize);
    mCommandList->ClearRenderTargetView(cBackBufferViewHandle, DirectX::Colors::LightSteelBlue, 0, nullptr);

    // Specify the buffers we are going to render to.
    mCommandList->OMSetRenderTargets(1, &cBackBufferViewHandle, false, nullptr);

    D3D12_VERTEX_BUFFER_VIEW vbv;
    vbv.BufferLocation = VertexBufferGPU->GetGPUVirtualAddress();
    vbv.StrideInBytes = sizeof(Vertex);
    vbv.SizeInBytes = vbByteSize;
    mCommandList->IASetVertexBuffers(0, 1, &vbv);
    D3D12_INDEX_BUFFER_VIEW ibv;
    ibv.BufferLocation = IndexBufferGPU->GetGPUVirtualAddress();
    ibv.Format = DXGI_FORMAT_R16_UINT;
    ibv.SizeInBytes = ibByteSize;
    mCommandList->IASetIndexBuffer(&ibv);
    mCommandList->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

    mCommandList->DrawIndexedInstanced(3, 1, 0, 0, 0);
    //mCommandList->DrawInstanced(3, 1, 0, 0);

    // Indicate a state transition on the resource usage.
    mCommandList->ResourceBarrier(1, &CD3DX12_RESOURCE_BARRIER::Transition(mSwapChainBuffer[mCurrBackBuffer].Get(),
        D3D12_RESOURCE_STATE_RENDER_TARGET, D3D12_RESOURCE_STATE_PRESENT));

    // Done recording commands.
    mCommandList->Close();

    // Add the command list to the queue for execution.
    ID3D12CommandList* cmdsLists[] = { mCommandList.Get() };
    mCommandQueue->ExecuteCommandLists(_countof(cmdsLists), cmdsLists);

    // swap the back and front buffers
    mSwapChain->Present(0, 0);
    mCurrBackBuffer = (mCurrBackBuffer + 1) % SwapChainBufferCount;

    // Wait until frame commands are complete.  This waiting is inefficient and is
    // done for simplicity.  Later we will show how to organize our rendering code
    // so we do not have to wait per frame.
    FlushCommandQueue();
}


int APIENTRY WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance
    , LPSTR lpszCmdParam, int nCmdShow)
{
    g_hInst = hInstance;

    WndClass.cbClsExtra = 0;
    WndClass.cbWndExtra = 0;
    WndClass.hbrBackground = (HBRUSH)GetStockObject(WHITE_BRUSH);
    WndClass.hCursor = LoadCursor(NULL, IDC_ARROW);
    WndClass.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    WndClass.hInstance = hInstance;
    WndClass.lpfnWndProc = (WNDPROC)WndProc;
    WndClass.lpszClassName = lpszClass;
    WndClass.lpszMenuName = NULL;
    WndClass.style = CS_HREDRAW | CS_VREDRAW;
    RegisterClass(&WndClass);

    hWnd = CreateWindow(lpszClass, lpszClass, WS_OVERLAPPEDWINDOW,
        CW_USEDEFAULT, CW_USEDEFAULT, WIDTH, HEIGHT,
        NULL, (HMENU)NULL, hInstance, NULL);
    ShowWindow(hWnd, nCmdShow);

    Init();

    hAccelTable = LoadAccelerators(hInstance, MAKEINTRESOURCE(IDC_CLIENT));

    while (true) {
        if (PeekMessage(&msg, 0, 0, 0, PM_REMOVE)) {
            if (msg.message == WM_QUIT)
                break;

            if (!TranslateAccelerator(msg.hwnd, hAccelTable, &msg)) {
                TranslateMessage(&msg);
                DispatchMessage(&msg);
            }
        }
        else
            Update();
    }
    return msg.wParam;
}

LRESULT CALLBACK WndProc(HWND hWnd, UINT iMessage, WPARAM wParam, LPARAM lParam)
{
    switch (iMessage) {
    case WM_DESTROY:
        PostQuitMessage(0);
        return 0;
    }
    return(DefWindowProc(hWnd, iMessage, wParam, lParam));
}
