opengl 설치 및 예제, 컴파일

아래 명령어로 opengl을 설치한다



sudo apt-get install -y build-essential
sudo apt-get install freeglut3-dev libglu1-mesa-dev mesa-common-dev



위 명령어 이후 /usr/include/GL 가 생긴것을 확인 가능하다





#include "GL/freeglut.h"

void init();
void display();
void drawPoints();
void keyboard(unsigned char key, int x, int y);

void drawPoints(){
    glClear(GL_COLOR_BUFFER_BIT);
    glColor3f(1.0, 1.0, 1.0);
    glBegin(GL_POLYGON);
    glVertex2f(-0.5, 0.0);
    glVertex2f(0.5, 0.0);
    glVertex2f(0.0, 1.0);
    glEnd();
    glFlush();
}

void keyboard(unsigned char key, int x, int y){
    switch(key){
        case 'q':
        case 'Q':
            exit(EXIT_SUCCESS);
            break;
        case 'r' :
        case 'R' :
            glClearColor(1.0, 0.0, 0.0, 1.0);
            break;
    }
    glutPostRedisplay();

}

int main(int argc, char **argv) {
    int mode = GLUT_RGB | GLUT_SINGLE;

    // GLUT_RGB : True Color Mode
    // GLUT_DOUBLE : Use Double Buffer
    // Default Mode : GLUT_RGB | GLUT_SINGLE

    // Init GLUT & create Window
    glutInit(&argc, argv);
    glutInitDisplayMode(mode);    // Set drawing surface property
    glutInitWindowPosition(100, 100);    // Set window Position at Screen
    glutInitWindowSize(400,400);    // Set window size. Set printed working area size. Bigger than this size
    glutCreateWindow("OpenGL");    // Generate window. argument is window's name
    glutSetWindowTitle("exam");

    // Register Callback function before set glutMainLoop()
    glutDisplayFunc(drawPoints);
    glutKeyboardFunc(keyboard);
    glutMainLoop();    // Monitor message queue and Run the corresponding callback function
    return 1;
}



컴파일을 한다





gcc exam.c -lglut -lGL -lGLU

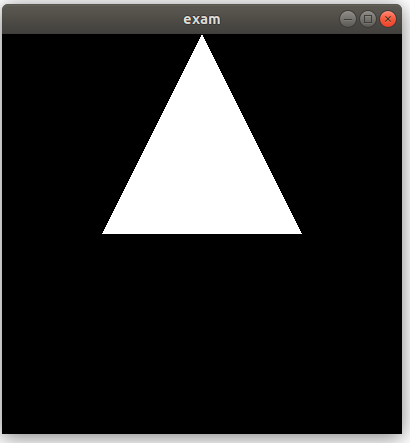

실행해본다

./a.out
